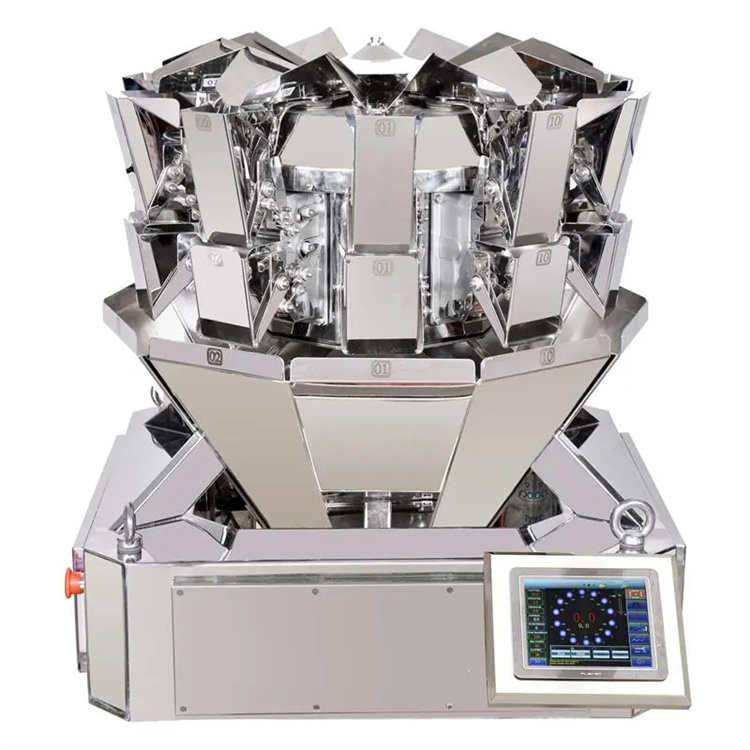

Mini Multi-head Weigher
Short Description:
Mainly used for weighing regular or irregular granular materials, suitable for food or non-food industry, such as potato chips, frozen food, vegetables, seafood, nails, etc.
Email: marketing@packkingmachinery.com
Tel/Whatsapp： +86-159 1522 0352 Joe
|
Model |
Y-W-10 |
Y-W-14 |
|
Weigh head |
10 |
14 |
|
Weigh Range |
1-200g |
1-300g |
|
Max.Speed |
65 bpm |
120 bpm |
|
Power Supply |
±0.1-1.0g |
±0.1-0.8g |
|
Packing Size |
1.0KW |
1.5KW |
|
N/G Weight |
1750x1350x1250mm |
1468x978x985mm |
|
Weigh Bucket |
200/250kg |
250/300kg |
|
Accuracy |
0.5L |
|
|
Control Penal |
7”or 10”Touch Screen |
|
|
Voltage |
220V 50/60Hz;Single Phase |
|
|
Drive System |
Stepper Motor(Modular Driving) |
|
Designed for small weight materials to improve speed and accuracy;
• V-shaped wire vibration plate makes the material more evenly dispersed;
• High precision digital sensor for highest accuracy;
• Compact design, can be assembled with vertical packaging machine into an all-in-one machine, saving cost and space;
• Optional quantity counting function;
1、Compact design for small weight product ,high speed and precision;
2、Special design to mount on the top of VFFS bagger into combine machine,save cost and space;
3、Servo motor duck month timing hopper ,collect products into one filling point to reach high speed;
4、HMI program can be changed according to customize requirement;
5、Central weight and level sensor checking ,double check for all kinds of product features;
6、AFC auto adjust linear vibration,make sure good accuracy;
7、Initial program recipe easy for operator setting,and save recipes same as micron office with different name;
8、Piston up&down function to stop products collision ,good for fragile products;
9、Measure by weight or counting piece,both are available.
