140-16ZK Vacuum premade packer
140-16ZK
Packaging Speed
80-120
bags/min
Product Application
| Model | 140-16ZK VACUUM PREMADE PACKER |
| Equipment Material | 304 stainless steel |
| Bag Material | Aluminum foilbag,paper bag,nylon bag,etc |
| Vacuum pump | Germany puxhu 100 pump/2.7kw; Shanghai jiuxin 120 pump/2.2kw(optional) |
| Packing bag specification | Width:55~110mm Length:60～190mm |
| Total power | Main machine power≈6KW |
| Electrical Configuration | Siemens |
| Air Consumption | 0.8m³/min(compressed air supplied by user) |
| Pneumatic components | Germany Festo FESTO,Japan SMC |
| Driving power | Standard three-phase 380V 50HZ |
| Driving method | Mechanical transmission(cam gear lever fullmechanical mode) |
| Machine shape | 2500×1500×1600(L*W*H) |
| Main machine weight | 3T |
| Suitable material | Duck necks,duck wings,chicken thighs,etc. |
| Sealing method | Instant heating for sealing and instant cooling after sealing |
| Packing speed | 80-120 bags/min(speed is determined by product characteristics and filling weight) |
| Environment | Room temperature 10-40 degrees Celsius, 30-90%RH,no dew,no corrosive gases,no dust and other harsh environments. |

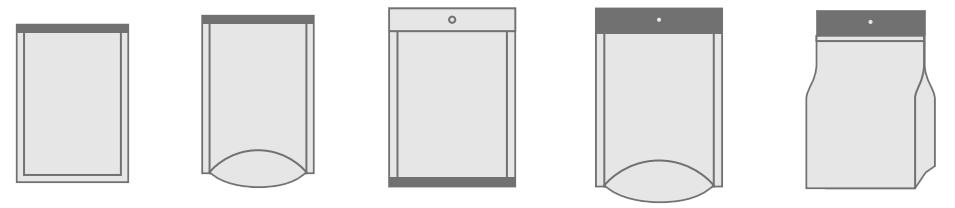

Applicable Bag Type
Keyword:
Related Products
100-16ZK+ Automatic screw feeder
100-16ZK+AUTOMATIC SCREW FEEDER Packing speed:80-110 bags/min(speed is determined by product characteristics and filling weight) Bag Material:Aluminum foil bag,paper bag,nylon bag,etc. Packing bag specification:With:55~110mm Leng:60~190mm Total power:Main machine power≈6kw Air Consumption:0.8m³/min(compressed air supplied by user) Driving power:Standard three-phase 380V 50HZ Machine shape:2500mmx1500mmx1600mm(L*W*H) Main machine weight:3T Environment:Room temperature 10~40 degrees celsius,30~90% RH,no dew,no corrosive gases,no dust and other harsh environments.
MORE
140-16ZK Vacuum premade packer
140-16ZK VACUUM PREMADE PACKER Packing speed:80-120 bags/min(speed is determined by product characteristics and filling weight) Bag Material:Aluminum foil bag,paper bag,nylon bag,etc. Packing bag specification:With:55~110mm Leng:60~190mm Total power:Main machine power≈6kw Air Consumption:0.8m³/min(compressed air supplied by user) Driving power:Standard three-phase 380V 50HZ Machine shape:2500mmx1500mmx1600mm(L*W*H) Main machine weight:3T Environment:Room temperature 10~40 degrees celsius,30~90% RH,no dew,no corrosive gases,no dust and other harsh environments.
MORE
Features 1、Fully automatic rotary 8 station intermittent rotary preformed bag dispensing, opening and closing. 2、Versatile in design, easy to link up with other down stream packaging equipment such as liquid filler, multi-heads weigher, metal detector, check weigher, case sealer, etc. 3、Strict mechanical safety standards to ensure stable operation of machinery and increase packaging speed. 4、Heavy parts are used to improve the durability of machinery. 5、The simple design of the touch screen control system facilitates the use of operators, and is simple and easy to use. 6、Improve the solution, reduce the cost for you. 7、The production line meets the requirements of food hygiene and is convenient to clean. 8、Automatic control of a series of processes from loading, filling, sealing, and finished products. 9、Automatic lubrication system.
MORE
PT100 -16ZK Measuring cup filler
The main optional equipment Material measuring and filling machine, working platform, weight selection scale, material elevator, finished product conveying elevator, metal detecting machine, printing code machine.
