PT8-240 Bagging machine
PT8-240
Packaging Speed
<60
bags/min
Product Application
| ltem | Content |
| Model | PT8-240 |
| Machine position | Eight position |
| Pouch material | Laminated film\PP\PE etc. |
| Pouch pattern | Preamde pouch,3 side-seal pouch with zipper or without zipper |
| Packing speed | 30~60 bags/min,depend on the measuring equipment,materials, product's weight &packing film'material etc. |
| Bag size | (L)100-330mm (W)80-240mm |
| Filling Volume | 10-1500g |
| Bag type | Preformed bag:Zipper bag,Stand-up pouch,3/4-side-seal pouch, four edge-sealing bag,special bag etc. |
| Air consumption | 0.5Mpa 0.6m³/min(supply by user) |
| Total Power supply | 3KW 3P 380V 50Hz |
| Dimension | 1680mm*1450mm*1400mm |
| Machine weight | 1800kg |

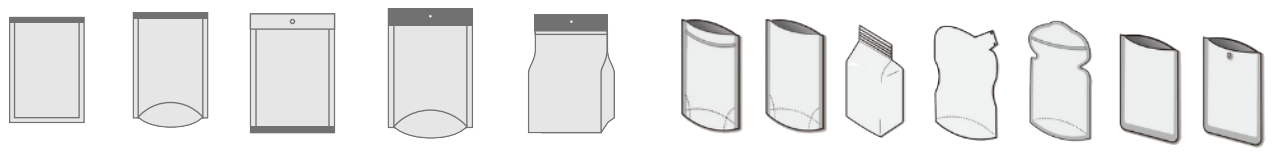

Applicable Bag Type
Keyword:
Related Products
100-16ZK+ Automatic screw feeder
100-16ZK+AUTOMATIC SCREW FEEDER Packing speed:80-110 bags/min(speed is determined by product characteristics and filling weight) Bag Material:Aluminum foil bag,paper bag,nylon bag,etc. Packing bag specification:With:55~110mm Leng:60~190mm Total power:Main machine power≈6kw Air Consumption:0.8m³/min(compressed air supplied by user) Driving power:Standard three-phase 380V 50HZ Machine shape:2500mmx1500mmx1600mm(L*W*H) Main machine weight:3T Environment:Room temperature 10~40 degrees celsius,30~90% RH,no dew,no corrosive gases,no dust and other harsh environments.
MORE
140-16ZK Vacuum premade packer
140-16ZK VACUUM PREMADE PACKER Packing speed:80-120 bags/min(speed is determined by product characteristics and filling weight) Bag Material:Aluminum foil bag,paper bag,nylon bag,etc. Packing bag specification:With:55~110mm Leng:60~190mm Total power:Main machine power≈6kw Air Consumption:0.8m³/min(compressed air supplied by user) Driving power:Standard three-phase 380V 50HZ Machine shape:2500mmx1500mmx1600mm(L*W*H) Main machine weight:3T Environment:Room temperature 10~40 degrees celsius,30~90% RH,no dew,no corrosive gases,no dust and other harsh environments.
MORE
Features 1、Fully automatic rotary 8 station intermittent rotary preformed bag dispensing, opening and closing. 2、Versatile in design, easy to link up with other down stream packaging equipment such as liquid filler, multi-heads weigher, metal detector, check weigher, case sealer, etc. 3、Strict mechanical safety standards to ensure stable operation of machinery and increase packaging speed. 4、Heavy parts are used to improve the durability of machinery. 5、The simple design of the touch screen control system facilitates the use of operators, and is simple and easy to use. 6、Improve the solution, reduce the cost for you. 7、The production line meets the requirements of food hygiene and is convenient to clean. 8、Automatic control of a series of processes from loading, filling, sealing, and finished products. 9、Automatic lubrication system.
MORE
PT100 -16ZK Measuring cup filler
The main optional equipment Material measuring and filling machine, working platform, weight selection scale, material elevator, finished product conveying elevator, metal detecting machine, printing code machine.
